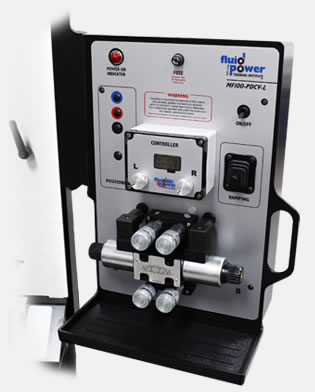

MF100-PDCV
Proportional Directional / Flow Control Valve module
with optional Position Feedback

Combined with the components on the MF102 series training systems, the Proportional Directional/Flow Control Valve Module will allow instructors to teach, and students to learn, all facets of Proportional Directional/Flow Control Valve operation and circuit application, and amplifier parameter adjustment.

PRODUCT UPDATE ANNOUNCEMENT! -
How easy would your job be if students could actually see exactly what happens to current, voltage, spool movement, and flow when operating, for example, a proportional direction and flow control valve with a linear potentiometer (joystick)
?

SEE FOR YOURSELF HERE . . .

The MF100-PDCV module consists of the following components:

  1. Two-position, 4-way, proportional solenoid controlled closed-center directional/flow control valve.
  2. Amplifier.
  3. Joystick controller (linear potentiometer) - optional.
  4. Aluminum, self-contained unit finished with a durable powder-coat with removable steel back cover.
  5. Front-plate with printed identification symbols and color-coding.
  6. Appropriate warnings and cautions.

Download Spec Sheet
