DCV-08-CM

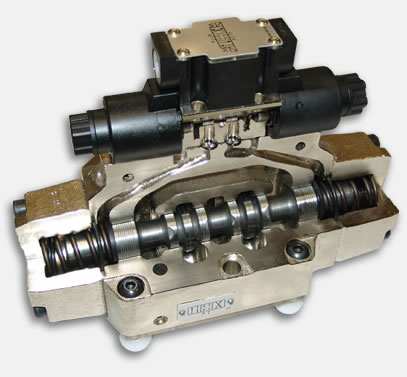

D08 two-stage Directional Control Valve


Two-stage, 03 and 08 size valves, solenoid-controlled, pilot-operated, internal or external drain, and, sub-plate mount. The description alone is intimidating. Put this stunning cutaway model in front of any student, and in literally a few minutes you will hear the words, “I get it!”

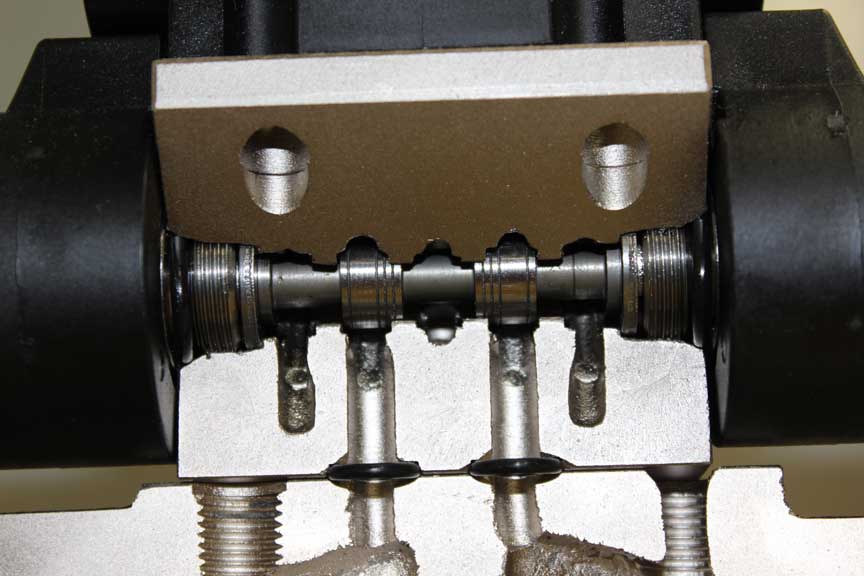

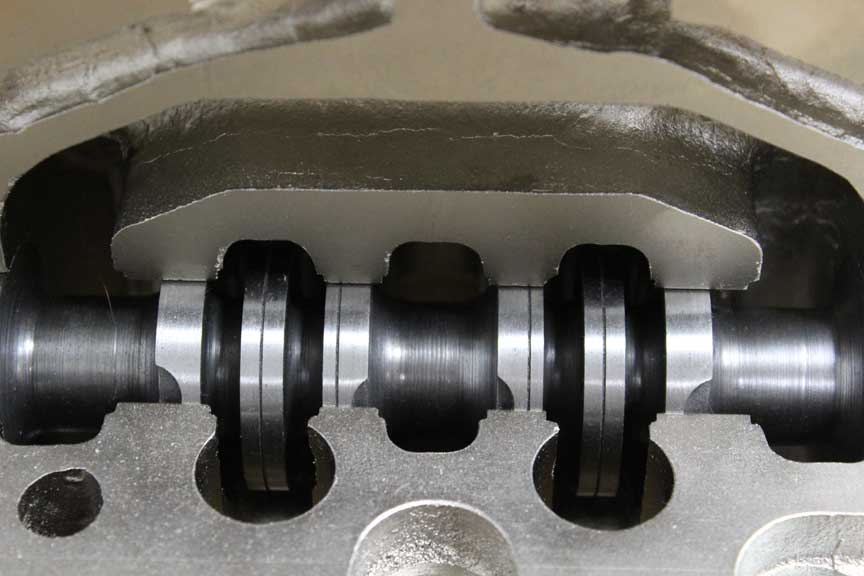

Handcrafted with amazing detail, every internal oil passage is exposed to make it possible to see exactly how the pilot valve drives the main valve. Both the pilot control valve and main valve have fully-functional spools.
