DAC-CM

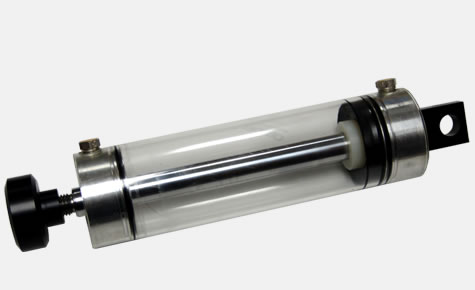

Cylinder (double-acting, single-rod)

Cylinders are relatively simple components. However, teaching and learning major and minor areas, flow intensification, pressure intensification, and seals is far easier with a fully-functional, completely transparent cylinder.

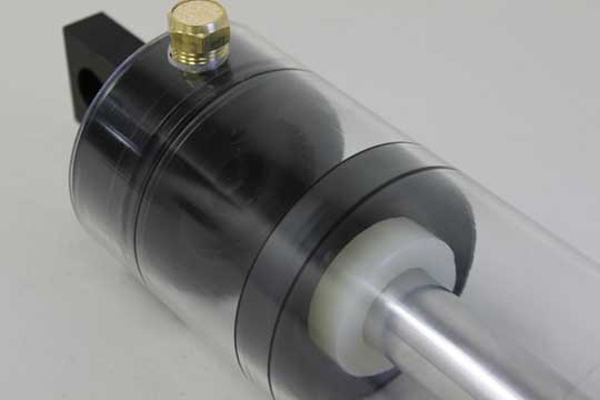

  • Clear acrylic cylinder tube to expose:

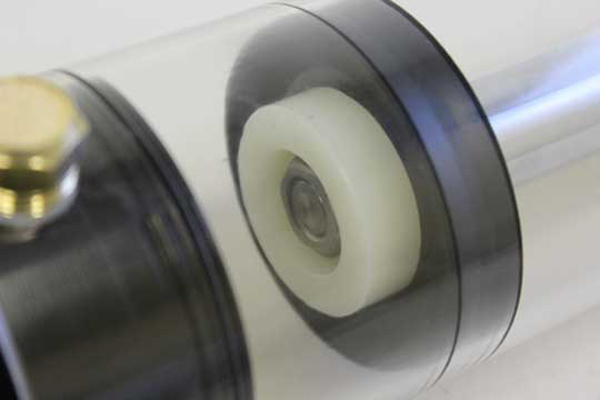

         - Cylinder piston

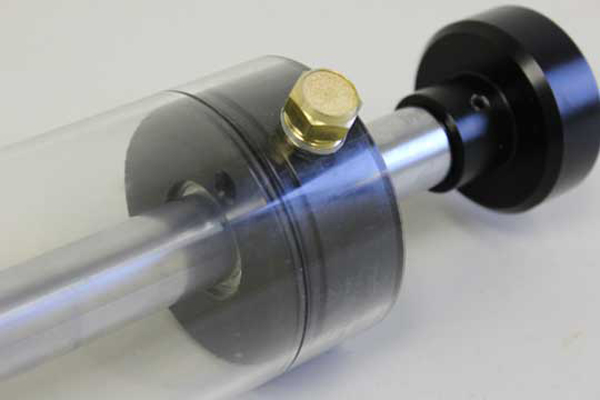

         - Cylinder rod
  • Breathers on ports allow easy movement of cylinder rod

Download Catalog
